Descriptive abstract

It is particularly suits for production of tablets from viscous, corrosive and
abrasive such as like turret adopt corrosion treatment

High lights

    • Rear-mounted electrical cabinet, covers an area only 1m2
      • Hung type of touch screen for more convenient
        • Force feeder special for poorly flowing raw material such as dishwasher and salt tablet
          • Double compression force station guarantee tablet hardness
            • Automatic lubrication system for lifetime working
              • Protection system for the pressure overload to make machine-stop when the pressure overload
                • Each punch pressure indication and no hand-wheels operation with fully automatic (optional)

                Features

                  •Appearance of all stainless steel.
                  •Fully closed windows keep a safe pressing room.
                  •With safety door function.
                  •Pressing room is complete separated with the driven system to ensure
                  non-pollution.
                  •Drive system is sealed in turbine box.
                  •PLC control system, easy operation through by touch screen and hand wheels

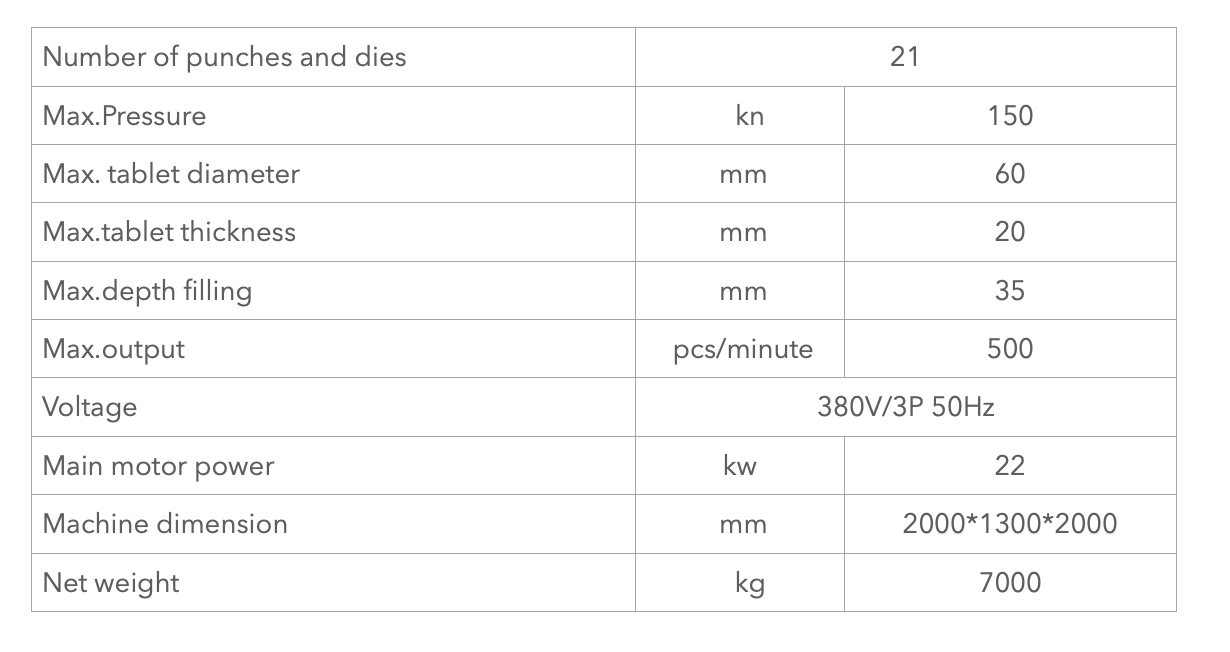

                  Main Specifications
