Robust design and high reliability for the perfect processing of abrasive or hard-to-handle products

Adjusted machine configurations ready for production for special chemical applications

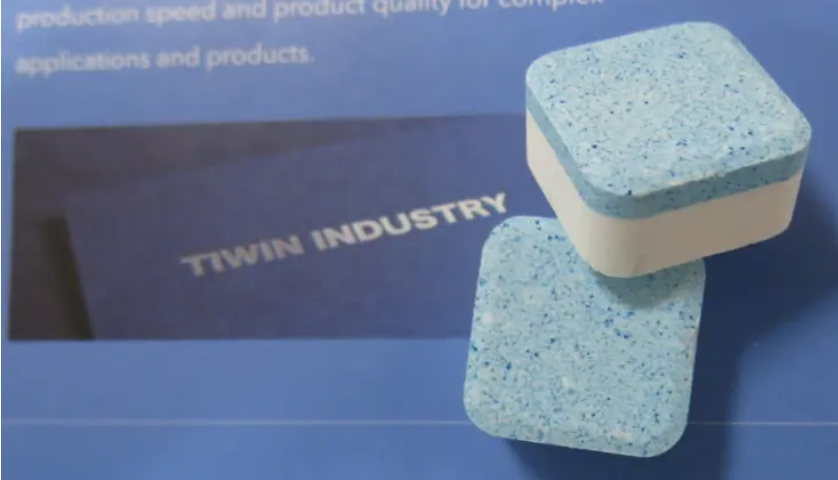

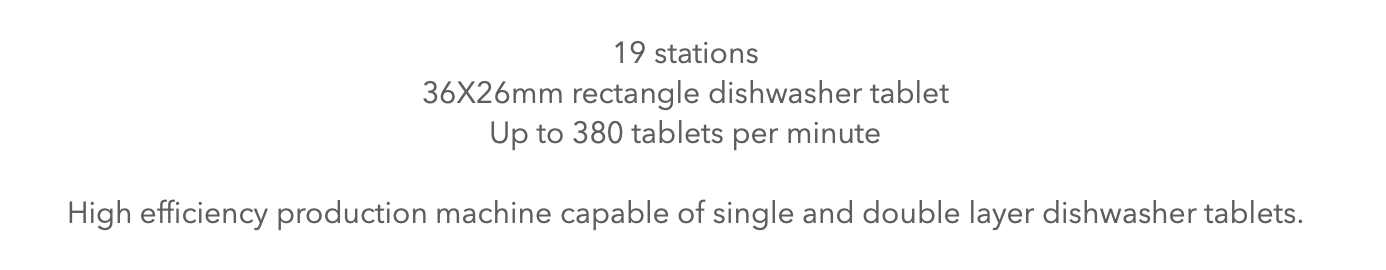

Perfect solutions for double-layer or single-layer
ZP420D-ZP15D

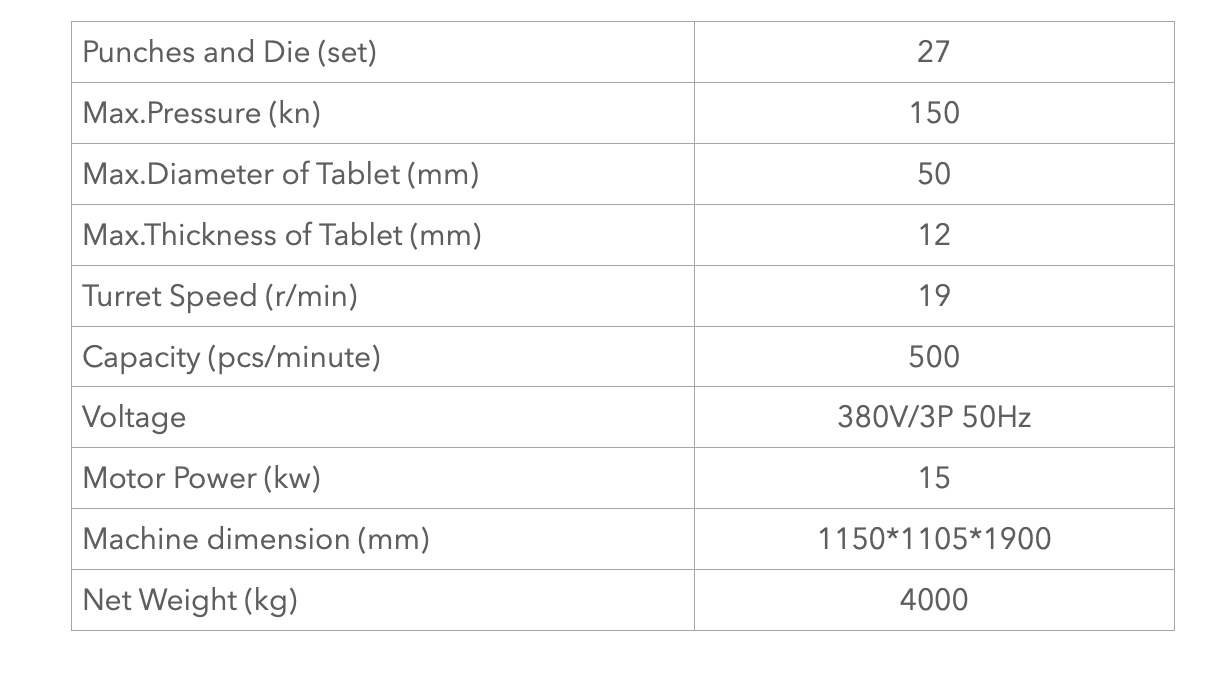

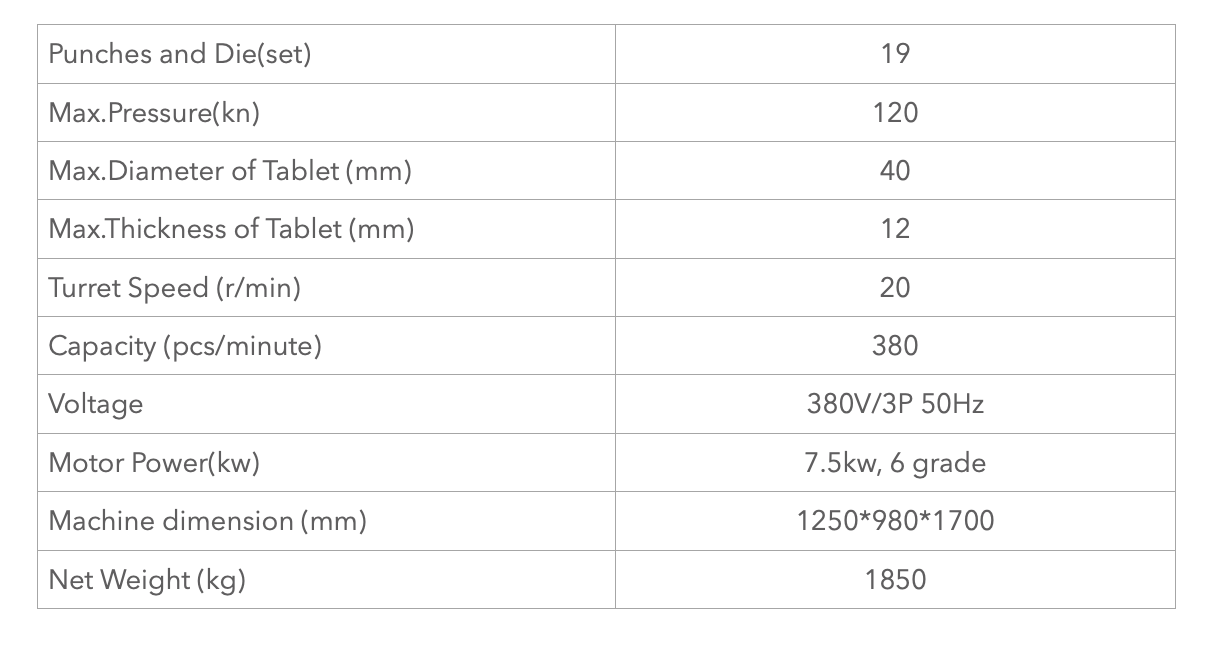

Specification

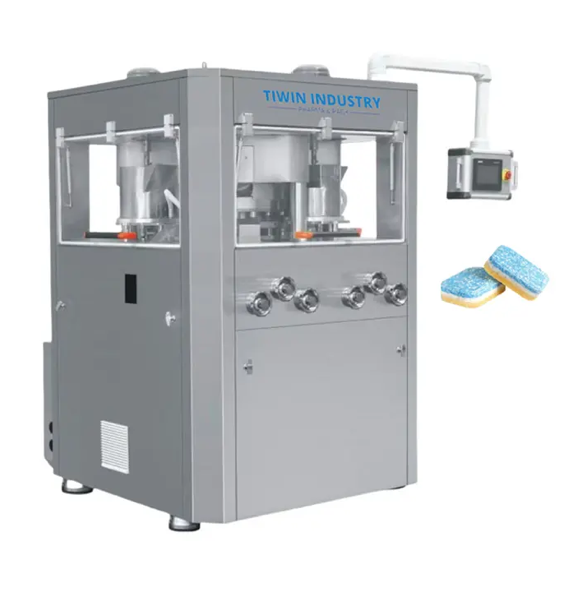

ZP680C-27

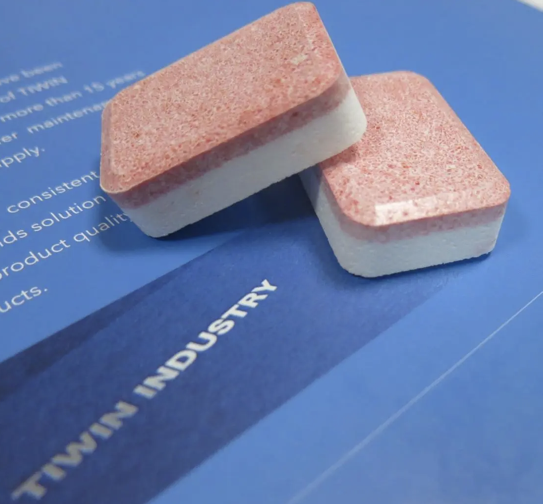

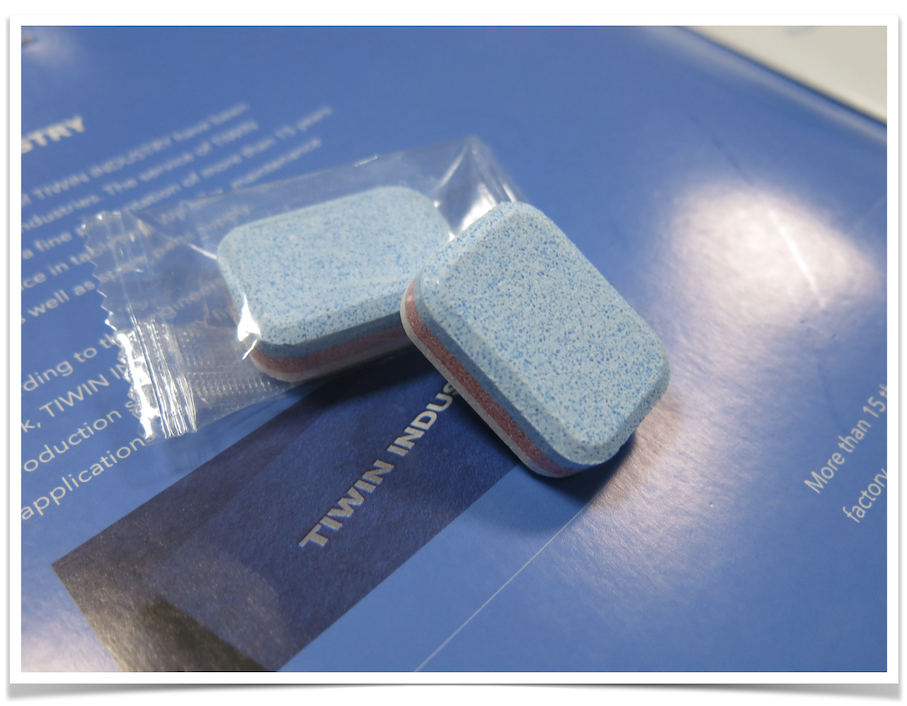

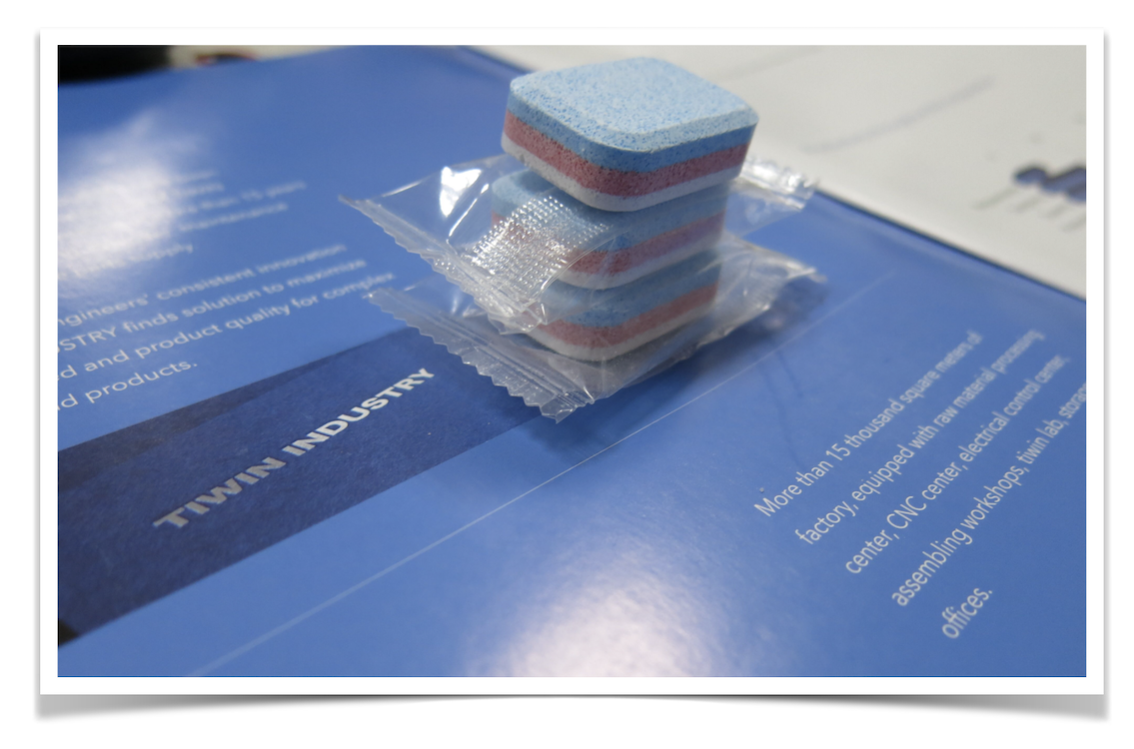

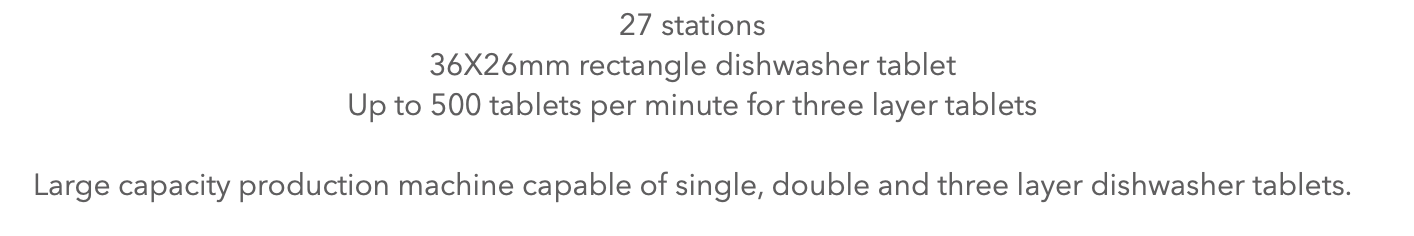

Perfect solutions for tri-layer

Feature

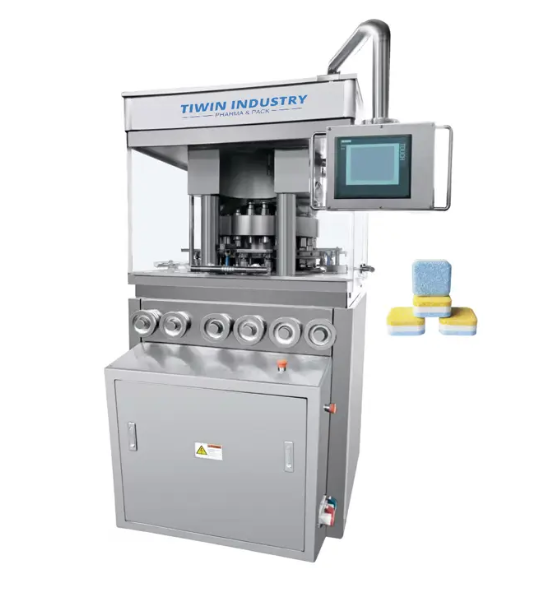

  • ZP680 Adopts a fully enclosed structure with the operation compartment isolated compartment from the outside,ensuring the cleanness
in the table
compressing area without creation of cross contamination with the outside,the compressing compartment is wholly made of stainless steel,
which is in compliance with the G.M.P requirement on the production of pharmaceuticals.
  • The surface of turret is with chrome playing to avoid the wearing of turret.
  • The speed adjustment of the driver is controlled by the frequency conversion device
  • The machine adopted are adjustment of speed by means of frequency inversion ,the motor is connected with under plate to avoid the
motor shaking when working.
  • An overload protection unit is equipped in the machine to avoid the damage of the punches and apparatus when overload occurs.The
machine stops automatically.
  • The machine's worm gear drive adopts fully -enclosed oil -immersed lubrication with long service -life ,prevent cross pollution
  • The series machines have protective device for upper punches broken.

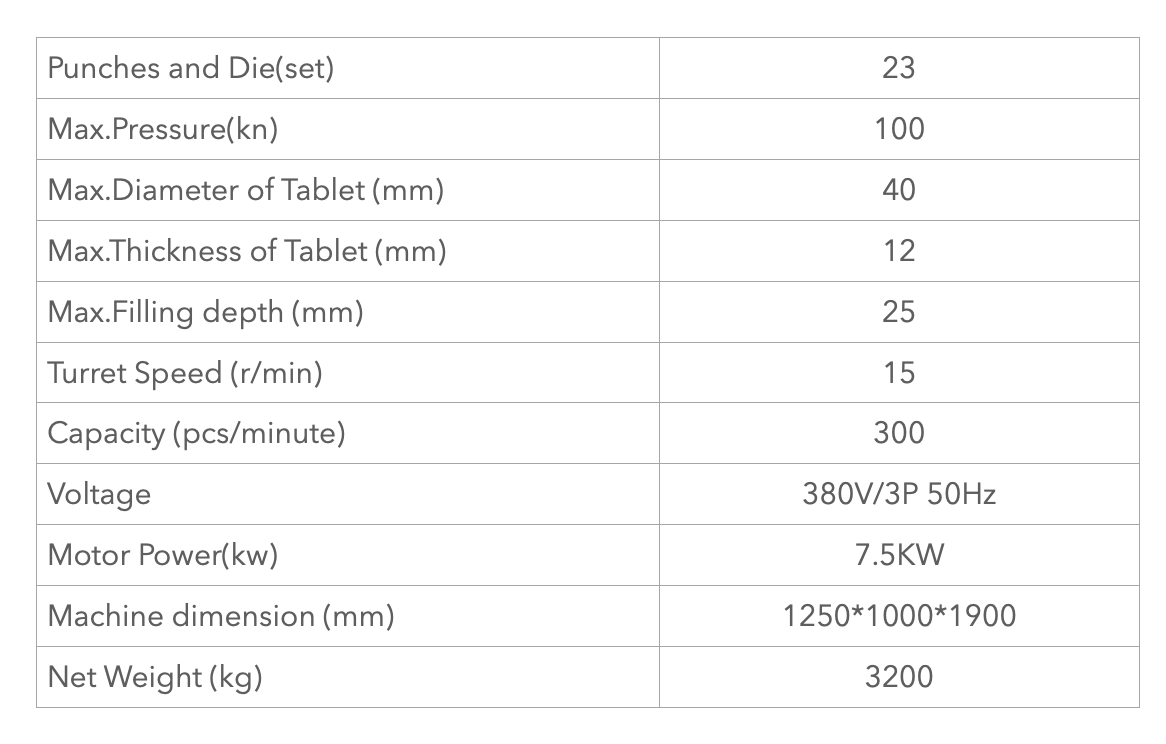

Specification

Feature

Specification
