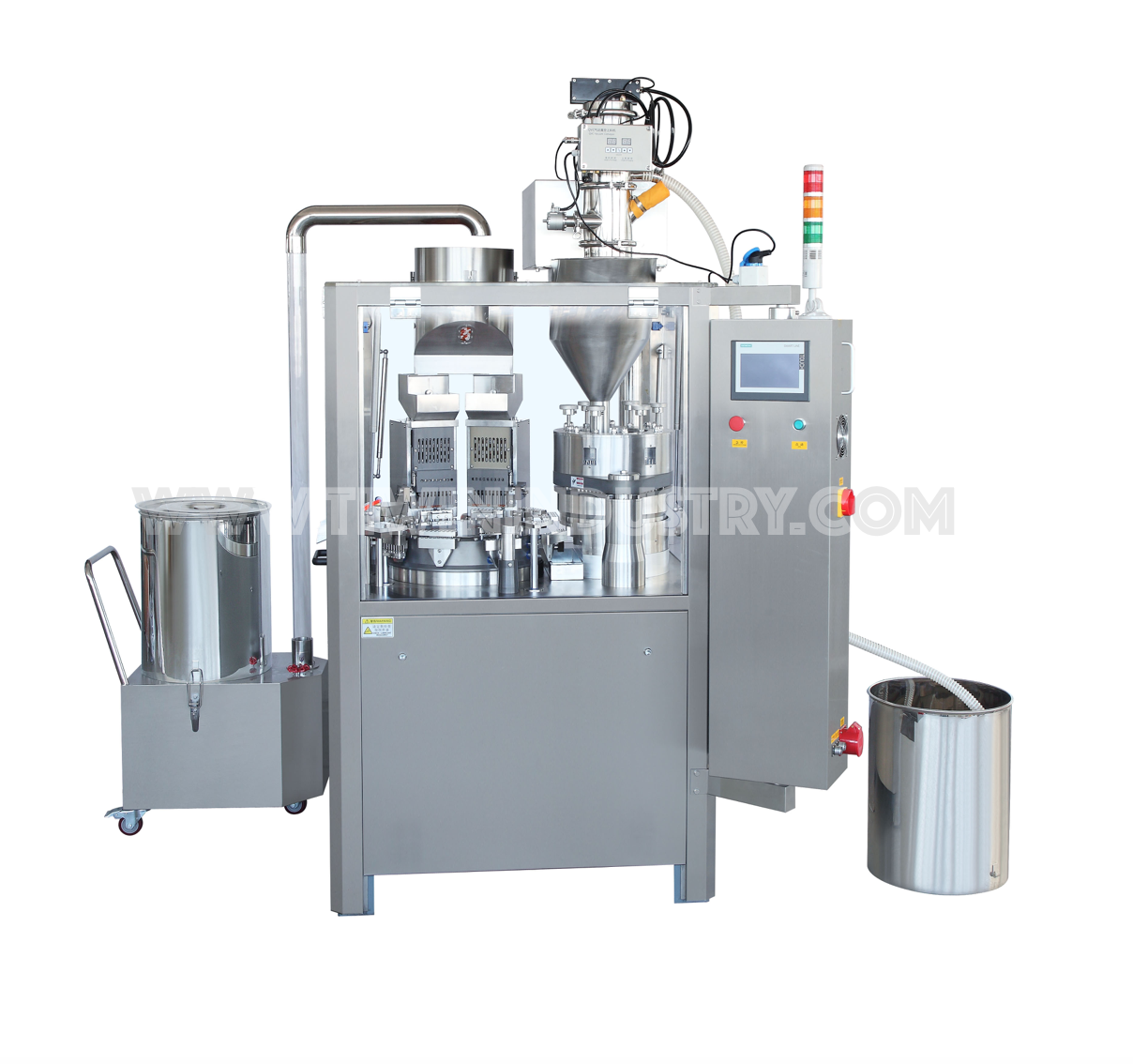

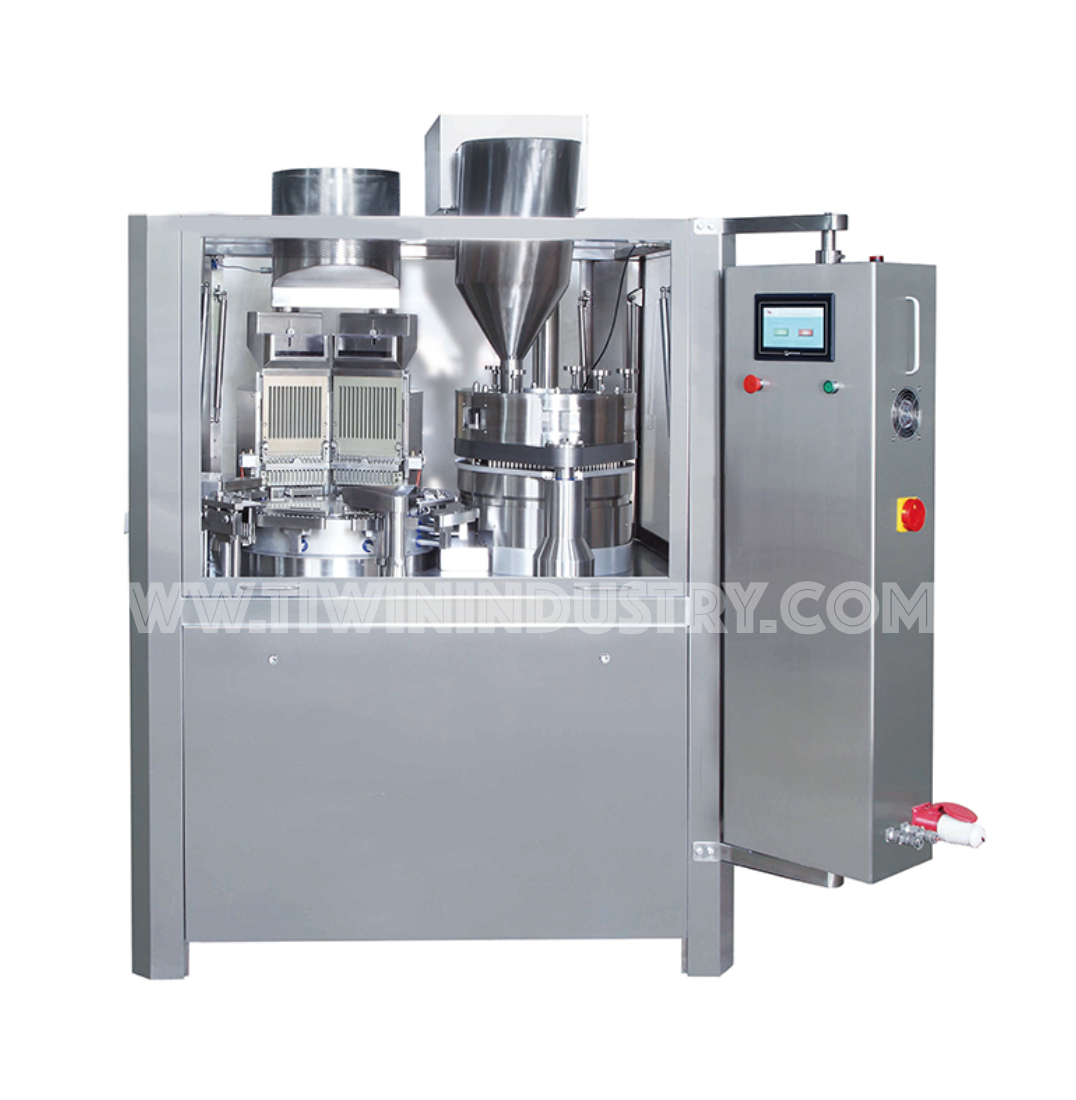

Automatic Capsule Filling Machine

• The equipment has small volume, low power consumption, easy to operate and clean.

• Products standardized, components can be interchanged, replacement of molds are convenient and accurate.

• It adopt cam downside design, to increase pressure in atomizing pumps, keep cam slot well lubricated, reduce wearing, thus prolong the

working life of the parts.

• It adopt high precision graduator, little vibration, noise below 80db and use vacuum-positioning mechanism to ensure the capsule filling

percentage up to 99.9%.

• It adopt a plane in a dose-based, 3D regulation, uniform space effectively guaranteed load difference, rinsing very convenient.

• It has man-machine interface, complete functions. Can eliminate faults such as materials shortage, capsule shortage and other faults, automatic

alarm and shutdown, real-time calculation and accumulation measurement, and high accuracy in statistics.

• It Can be completed simultaneously broadcast capsule, branch bag, filling, rejecting, locking, the finished product discharging, module

cleaning function.
